Specification
SPECIFICATIONS
Battery Capacity(mAh): 1800
Battery Included: Yes
Brand Name: BAOFENG
Certification: CE,FCC

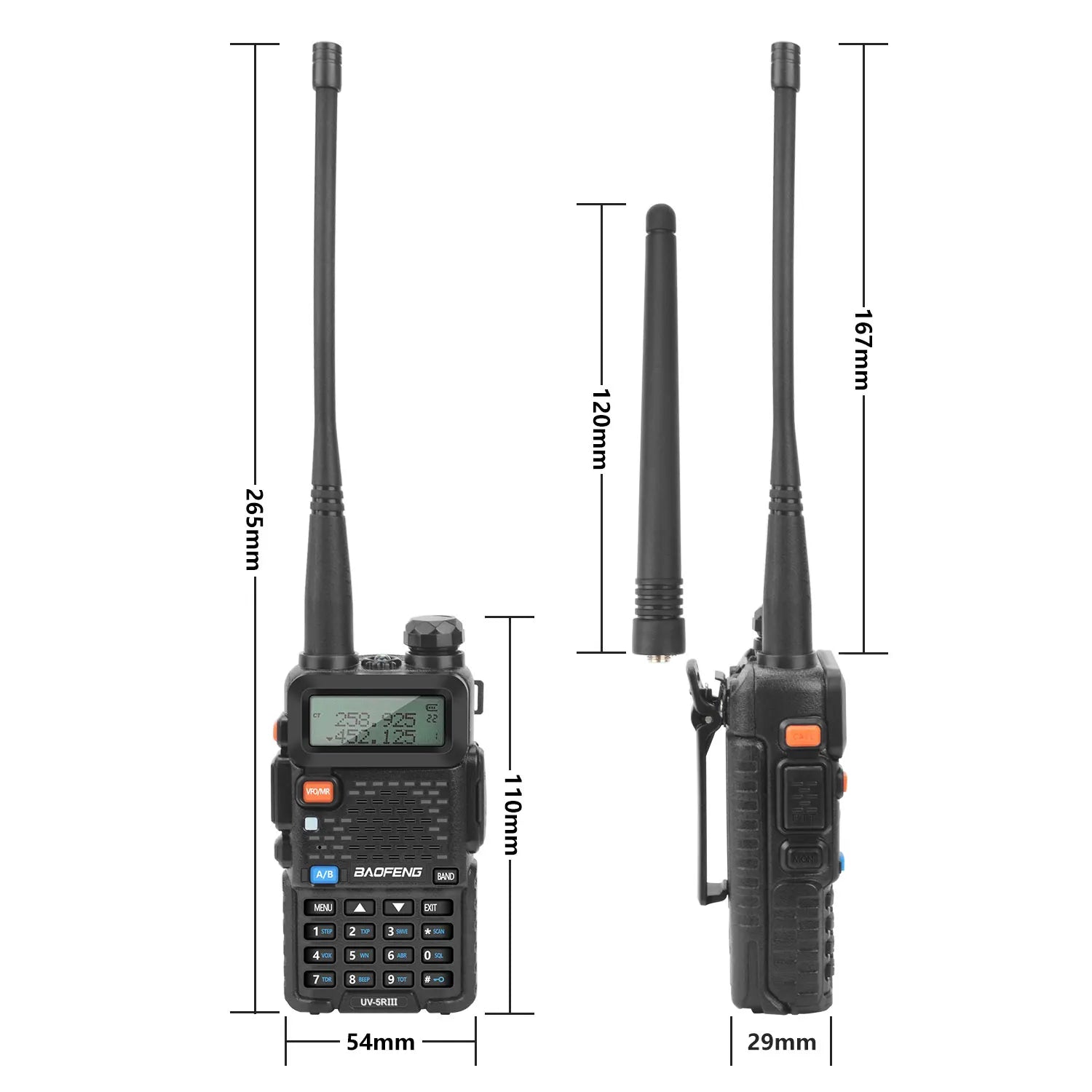

Dimensions: 58*110*32/mm
Frequency Range: Tri-band,VHF:136-174MHz,200-260MHz,400-520MHz
High-concerned chemical: None
Is_Display: Yes
Material: Plastic
Maximum Range: 1.5km-3km
Model Number: UV-5RIII
Origin: Mainland China
Output Power(w): 3w-5w
Storage Channel: 128
Use: others
Walkie Talkie Type: Portable
Waterproof / Water-Resistant: No

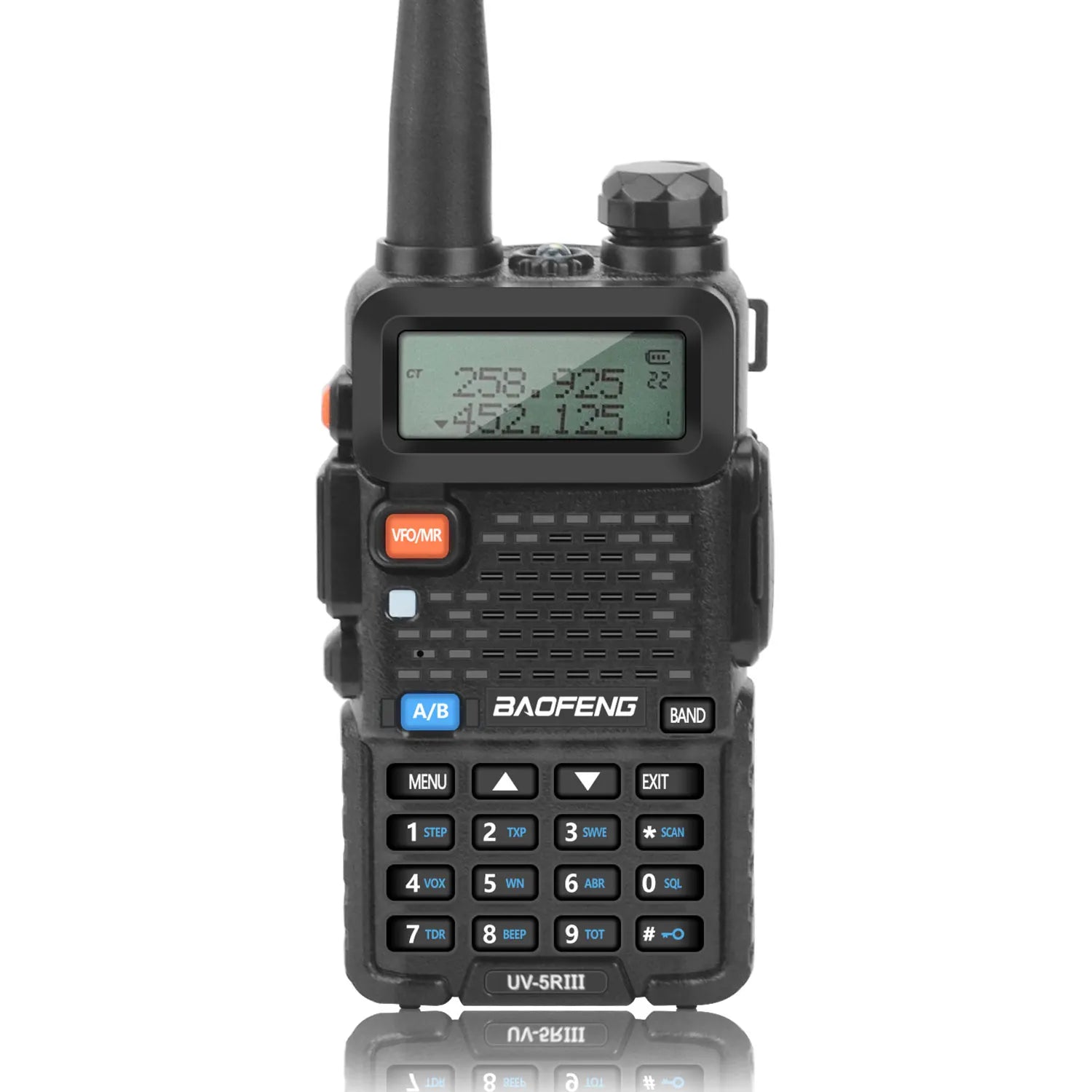

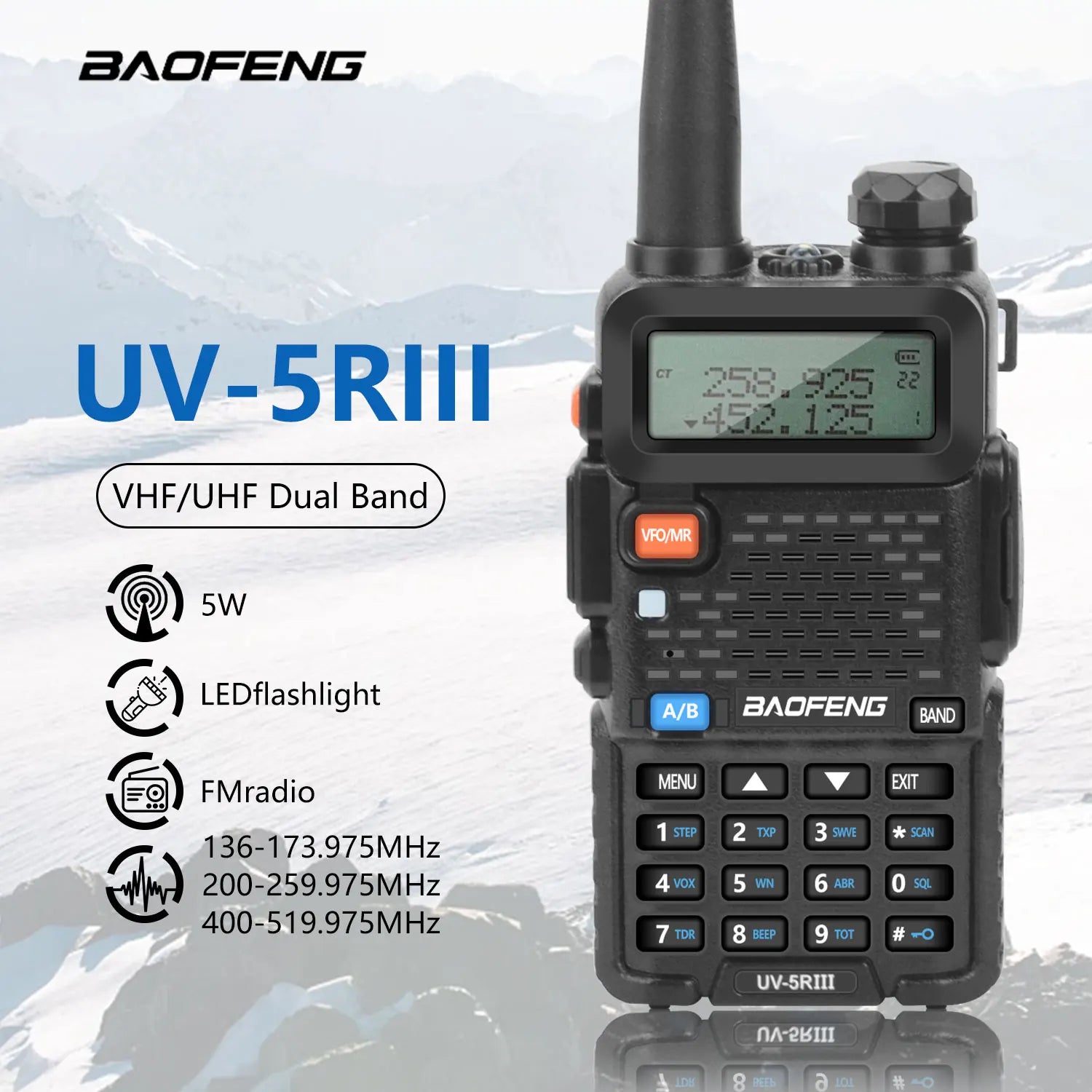

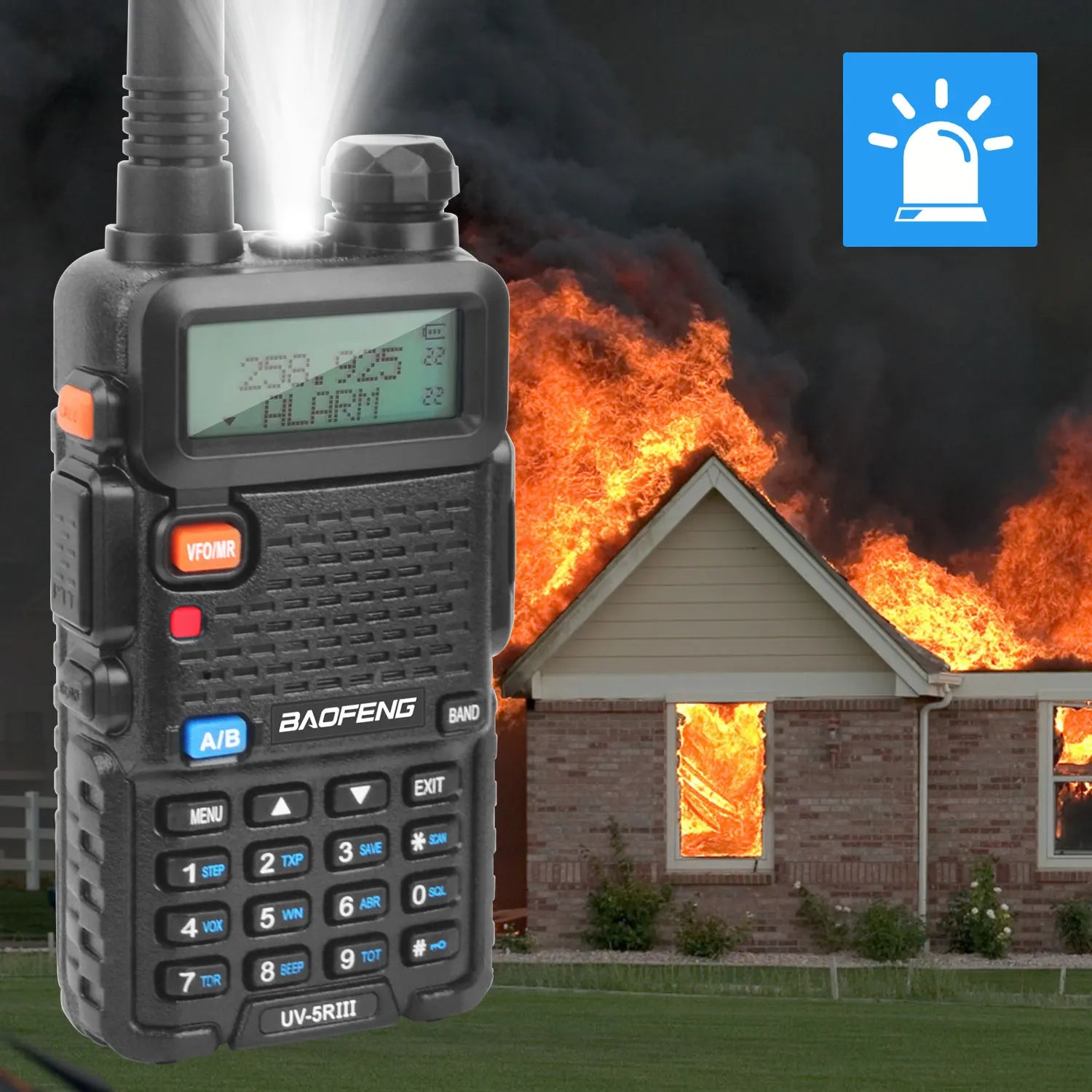

BAOFENG UV-5RIII Walkie Talkie Tri-band 136-174MHz200-260MHz 400-520MHz 128Ch 5W FM VOX Roger Beep

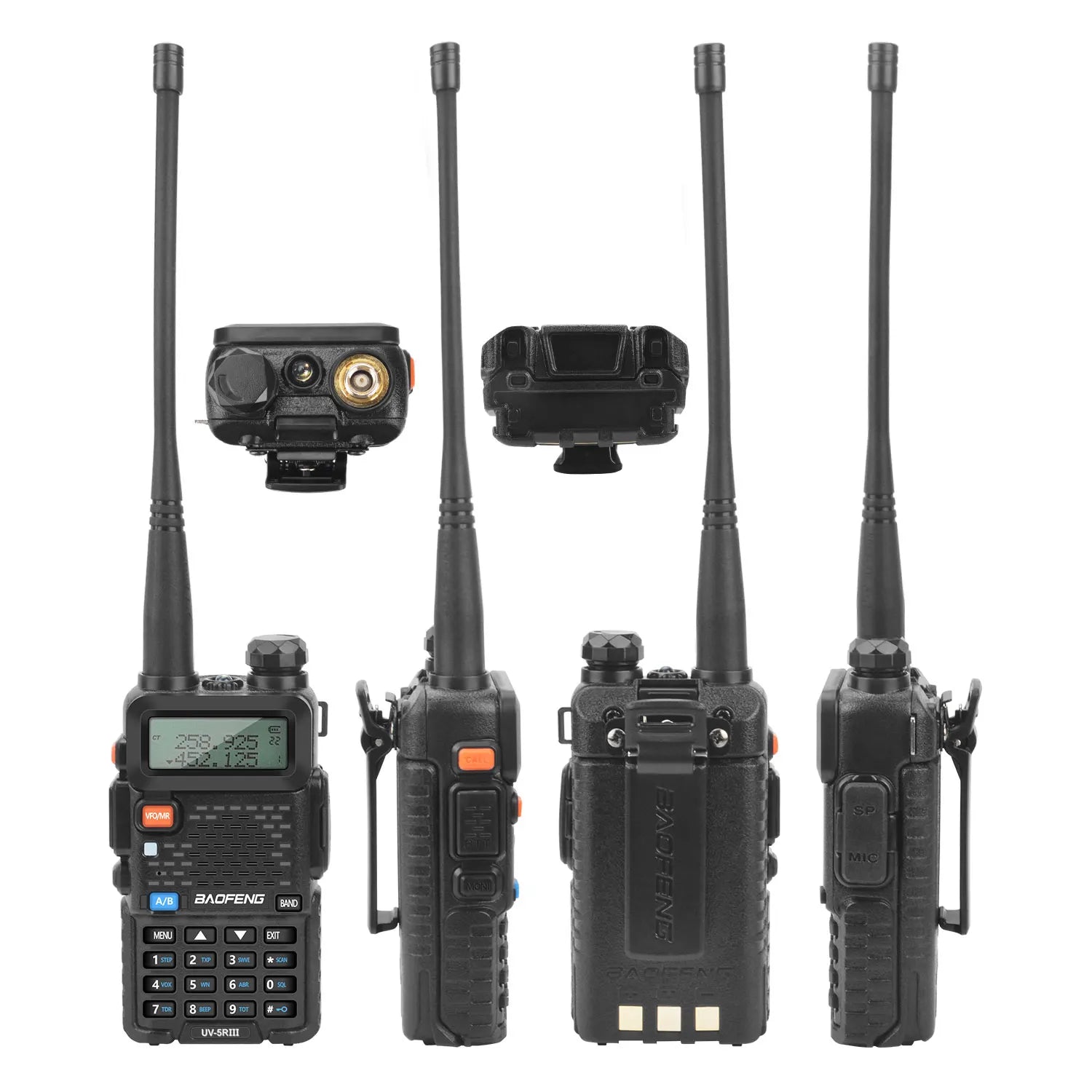

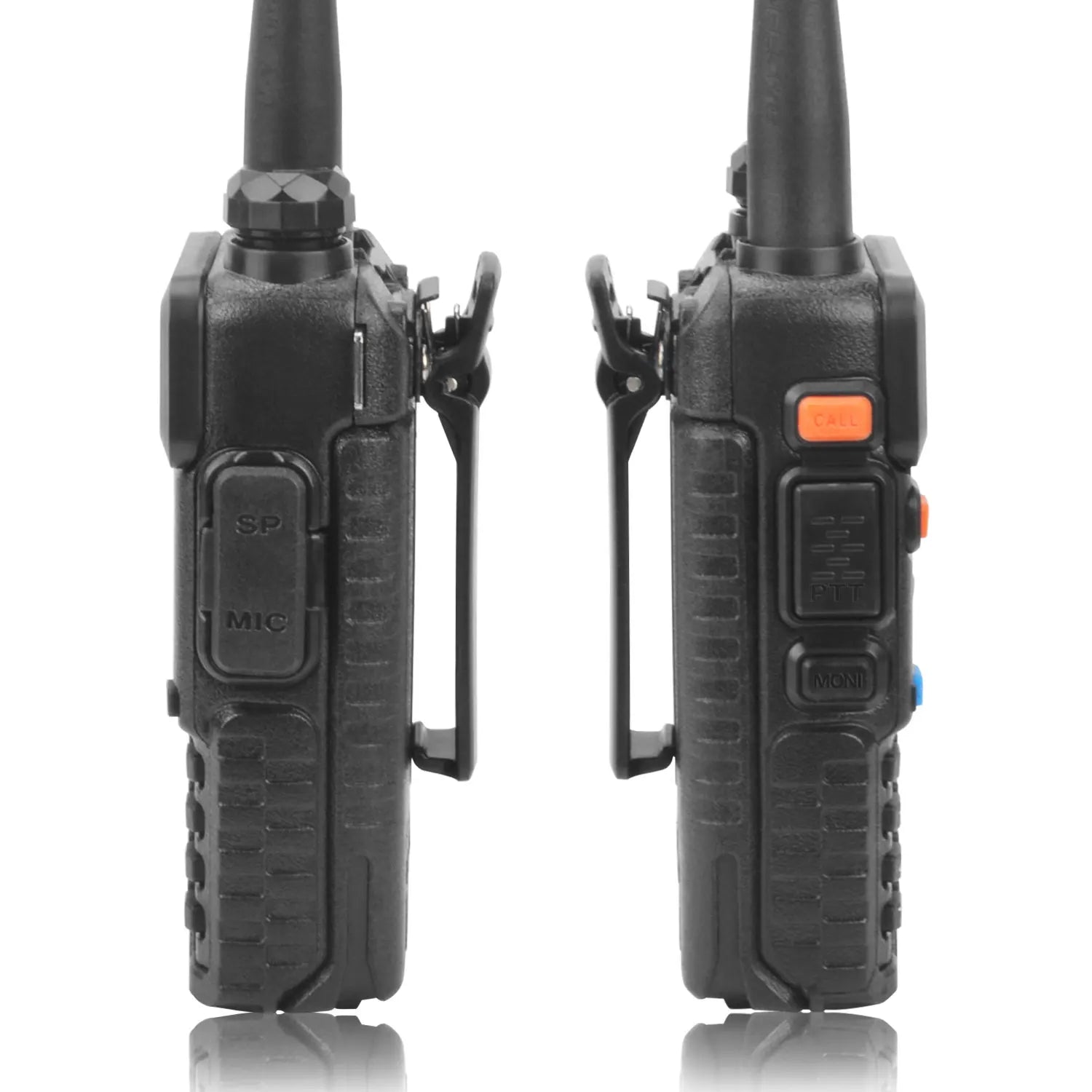

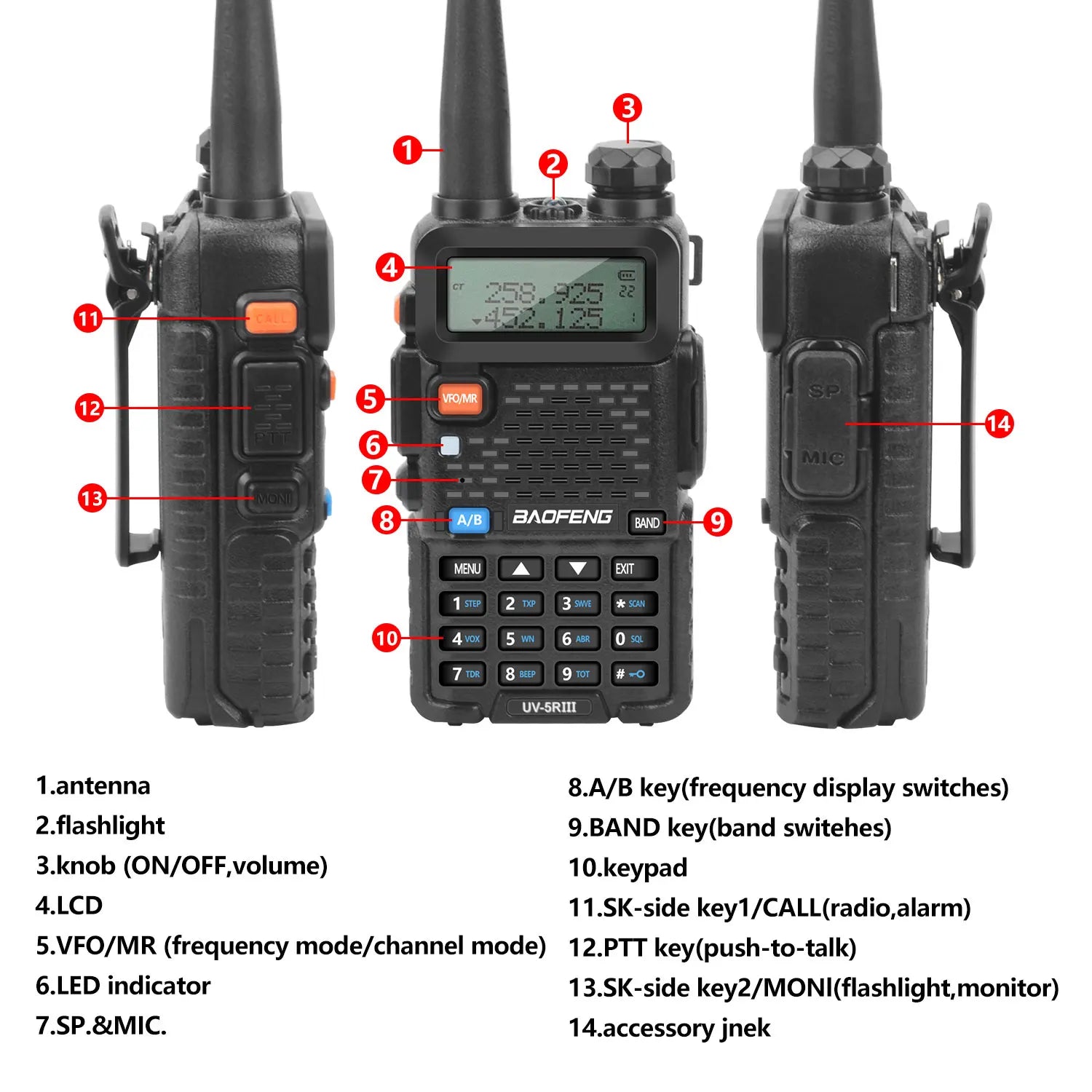

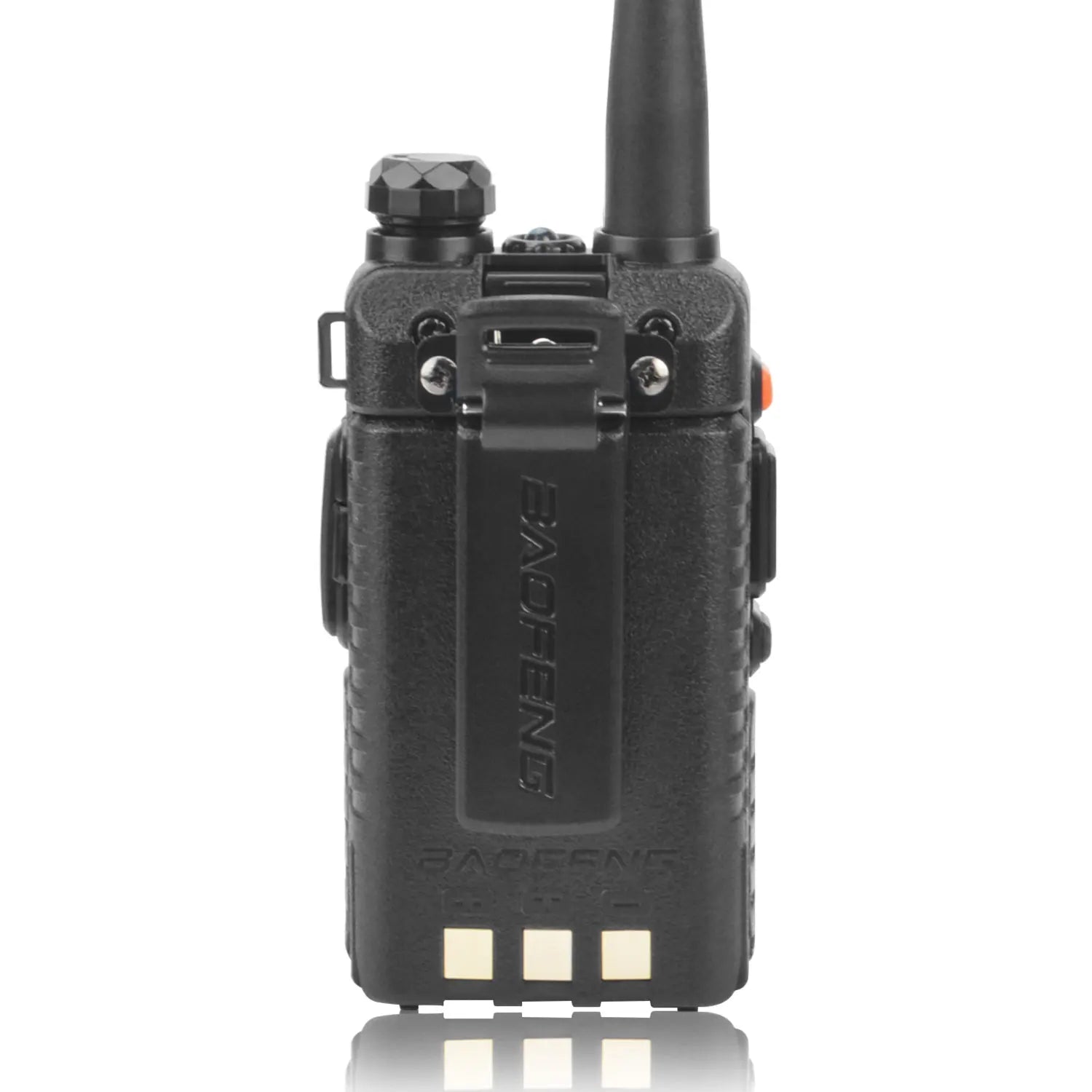

Photos:
Features:
Freq Range: Tri-band
VHF:136-174MHz (Tx&RX)
UHF1:200-260MHz (Tx&RX)
UHF2:400-520MHz(Tx&RX)

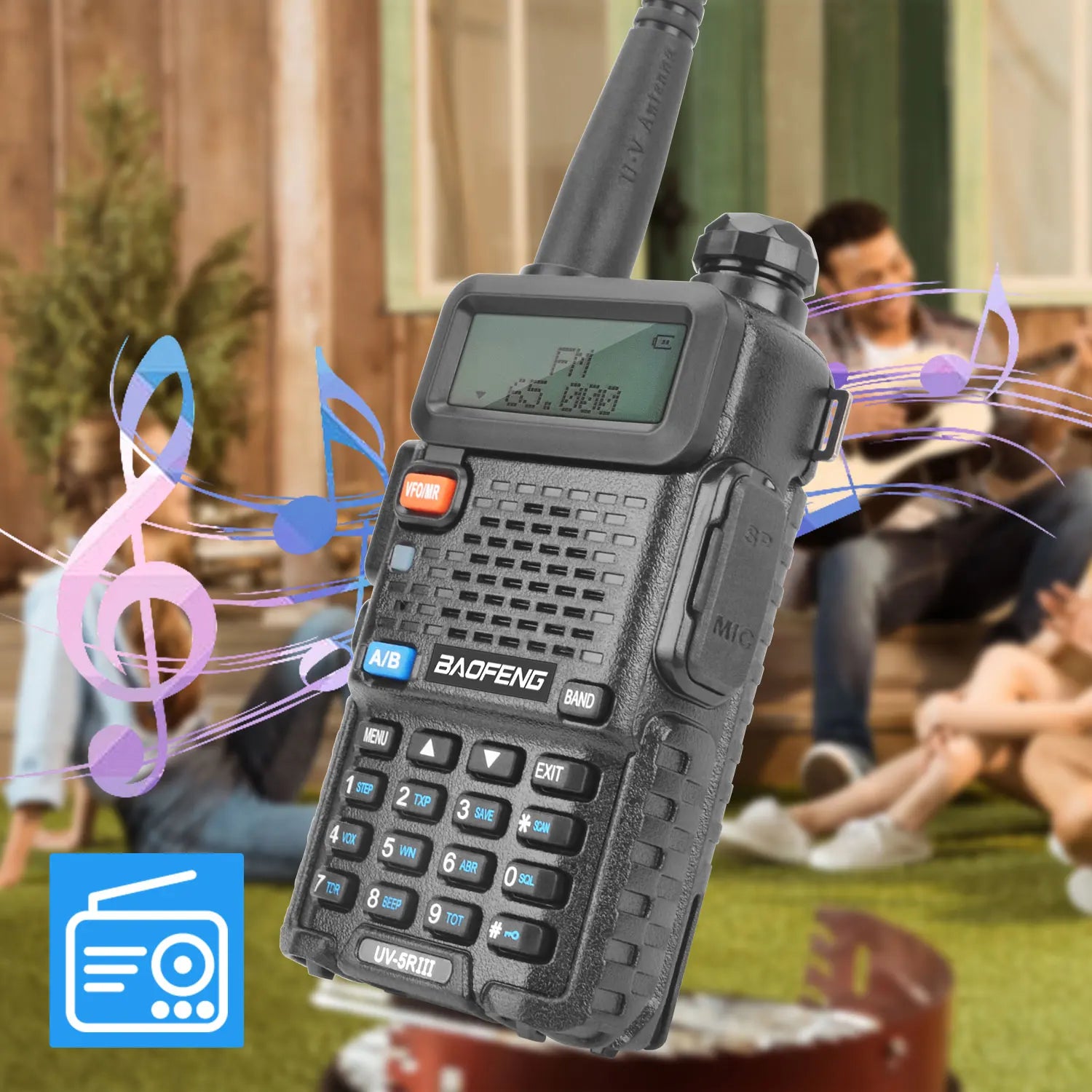

FM Commercial Radio: 65-108MHz

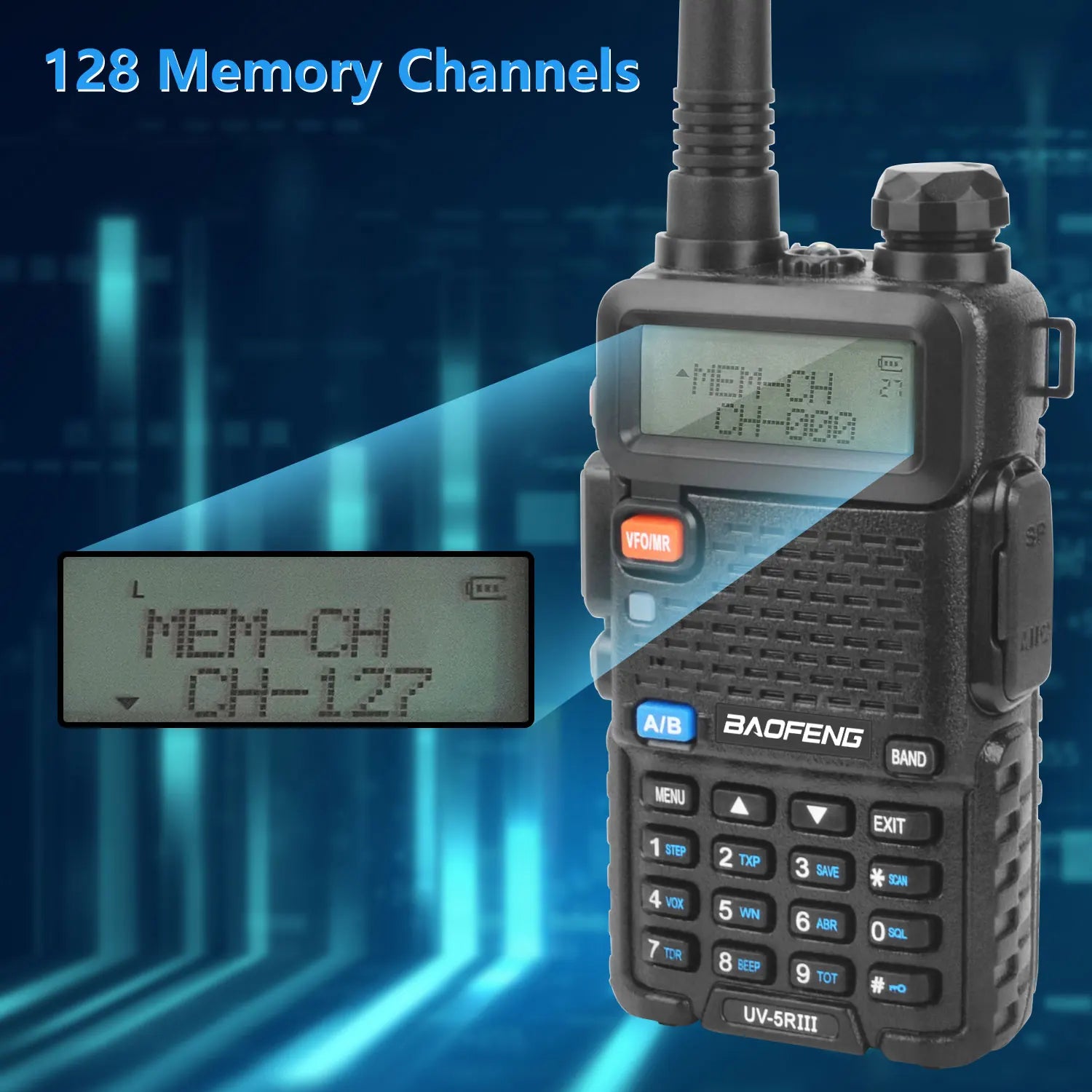

128 Memory Channels

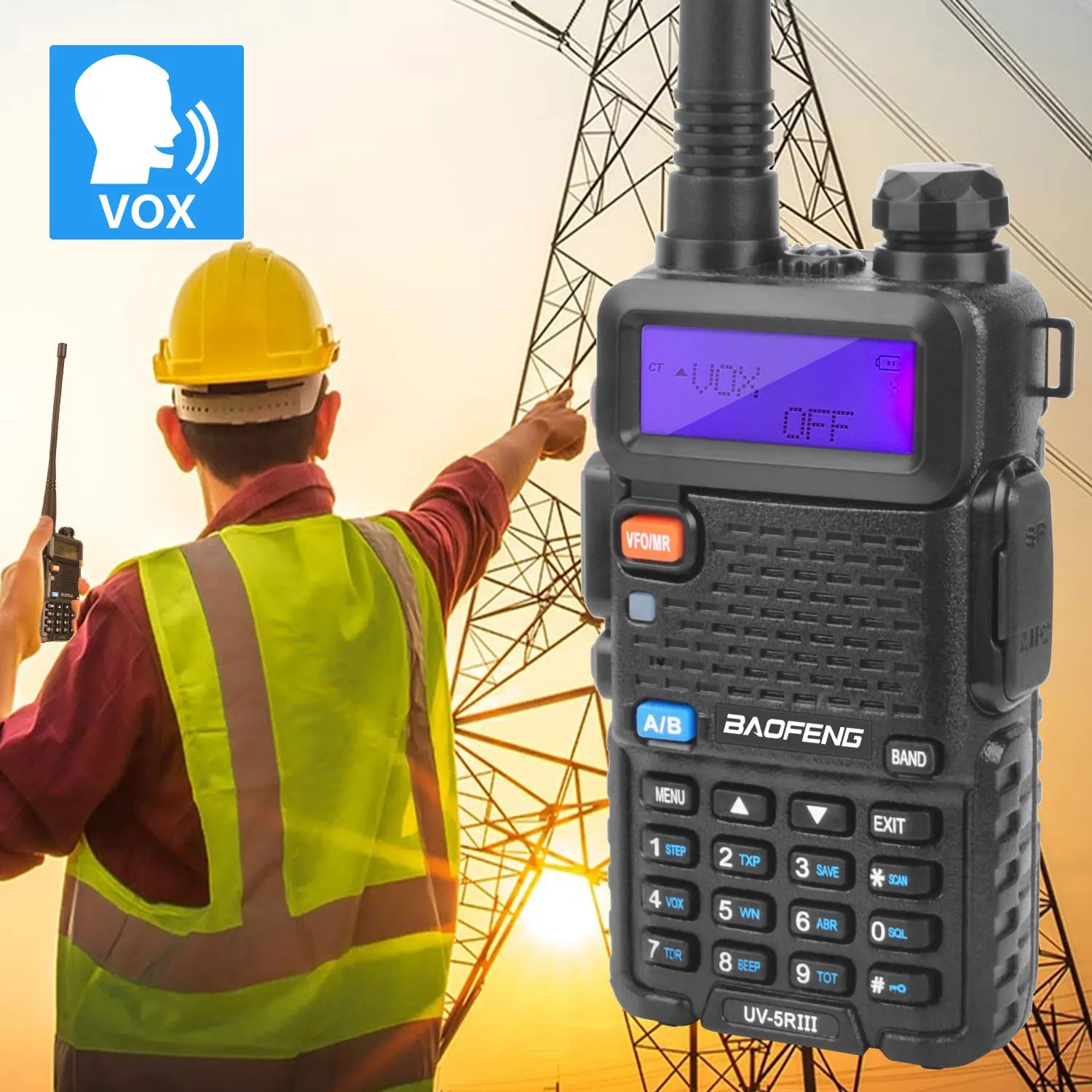

Vox (Voice operated Transmission)
Roger Beep (talk end tone)
Dual Watch dual Reception (TDR)
50 groups CTCSS Sub-tone

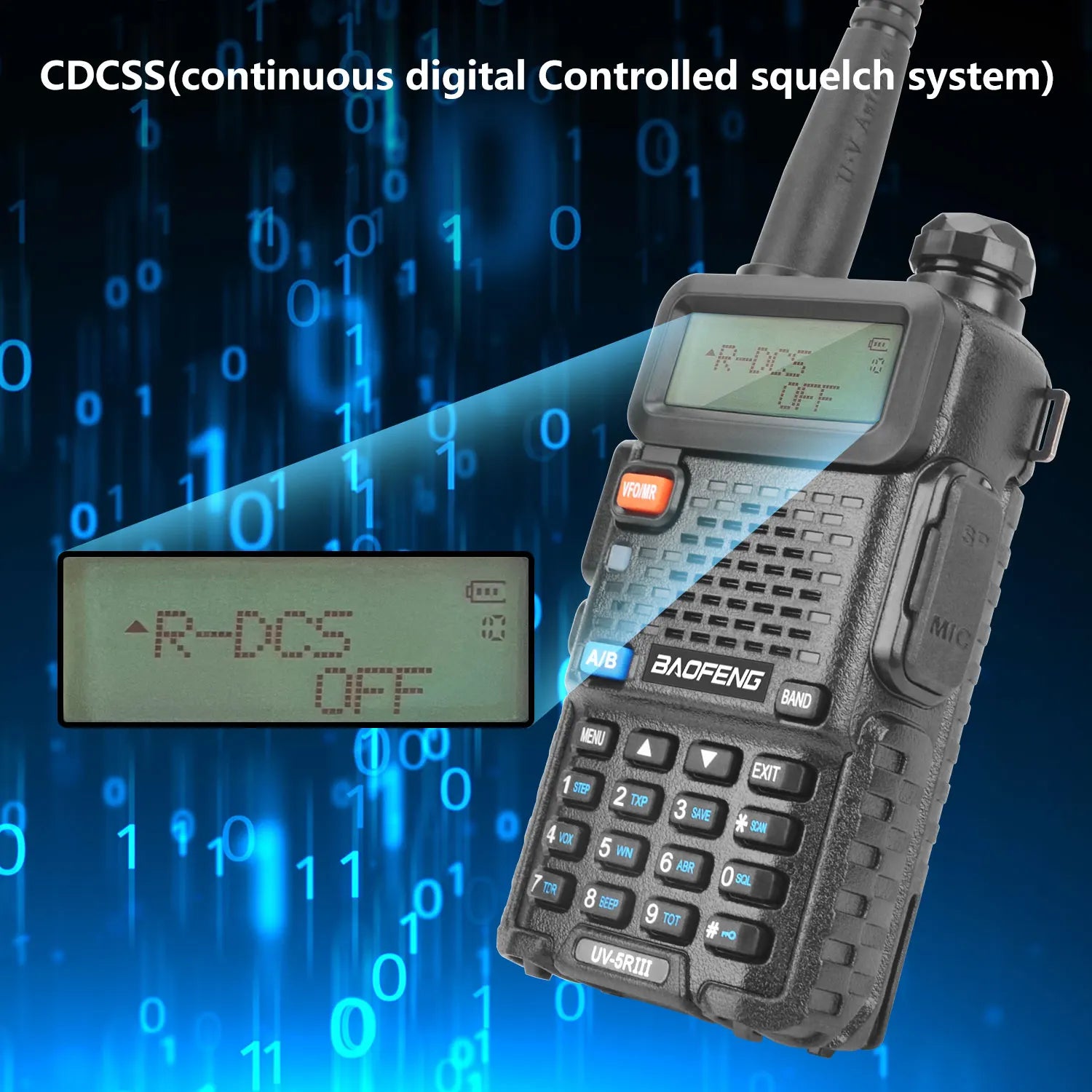

105 groups DCS Sub-tone
DTMF Emergency Alarm

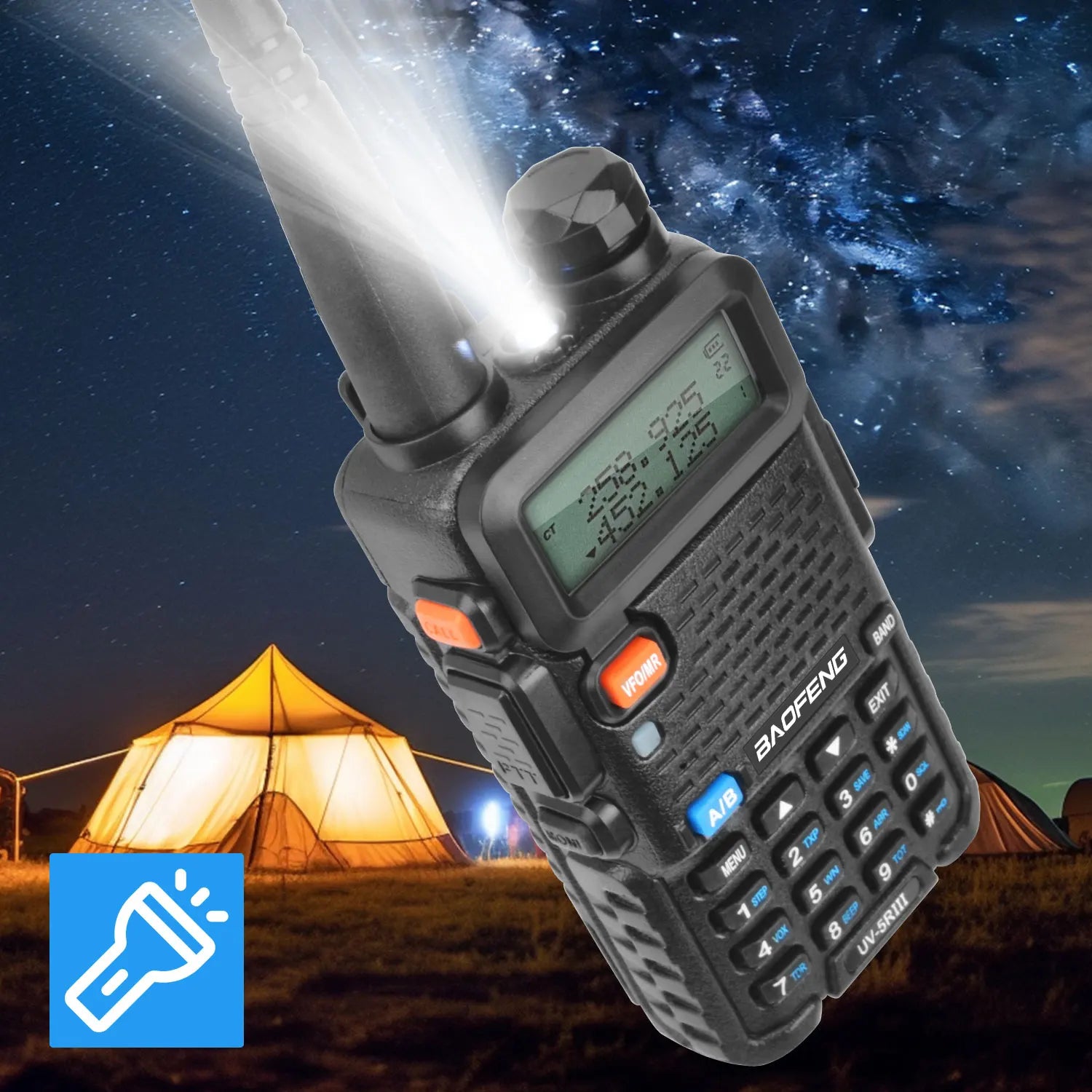

Torch Light
PC & manual Programmable
Freq Step:2.5/5.0/6.25/10.0/12.5/20.0/25.0/50.0KHz
Function “OFFSET”(Frequency offset for repeater access)
Broadband(Wide 25KHz) /Narrowband(Narrow 12.5KHz) Selectable
Battery Save

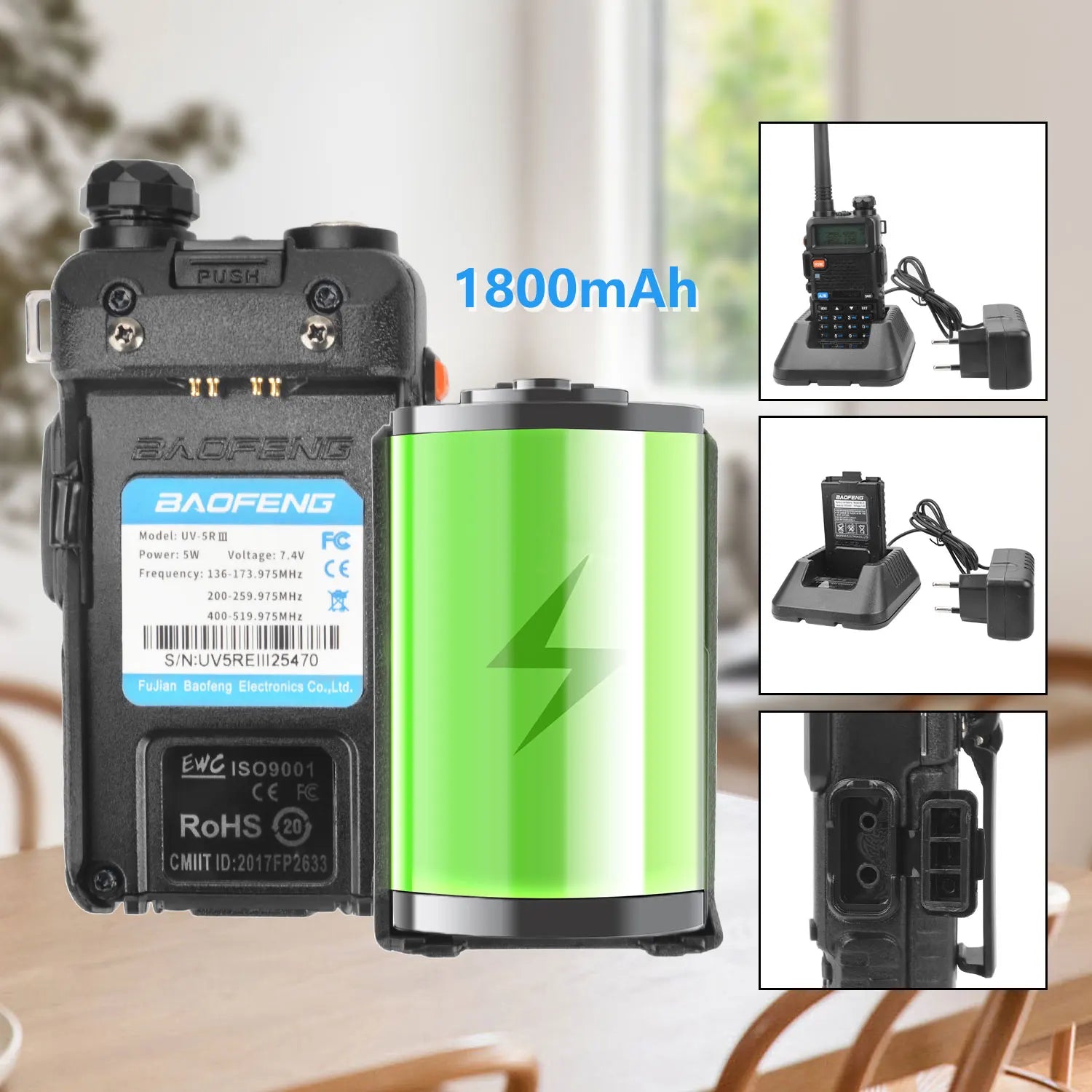

1800mah Rechargeable Li-Ion Battery Pack
Specifications:
General
General | |
Freq Range |
65-108MHz (For Commercial FM Radio Reception only) Tri-Band;136-174MHz(RX&TX),200260(RX&TX),400-480MHz(Rx/TX) |
Memory Channels |
Up to 128 |
Frequency Stability |
2.5ppm |
Frequency Step |
2.5/5.0/6.25/10.0/12.5/20.0/25.0/50.0KHz |
Antenna Impedance |
50 ohm |
Operating Temperature |
-20°c-+60°c |
Supply Voltage |
7.4V 1800mAh Rechargeable Lithium-ion |
Consumption in reception |
380mA |
Consumption in transmission |
≤1.4A |
Mode of operation |
Simplex or semi-duplex |
Duty Cycle |
03/03/54min.(RX/TX/Standby) |
Dimensions |
58*110*32/mm |
Weight |
130g (appro.) |
Transmitter | |
RF Power |
5w(High Power)/1w(Low Power) |
Type of modulation |
FM. |
Emission Class |
16K F3E/11K F3E (W/N) |
|
Maximum deviation Spurious emissions |
≤±5KHz ≤±2.5KHz(W/N) <-60Db |
Receiver | |
Receiver Sensitivity |
0.2uV (at 12dB SINAD) |
Inter-modulation |
60dB |
Audio Output |
1W |
Spurious Radiation |
≥65dB |
Note: Specifications shown are subject to change without priority notice

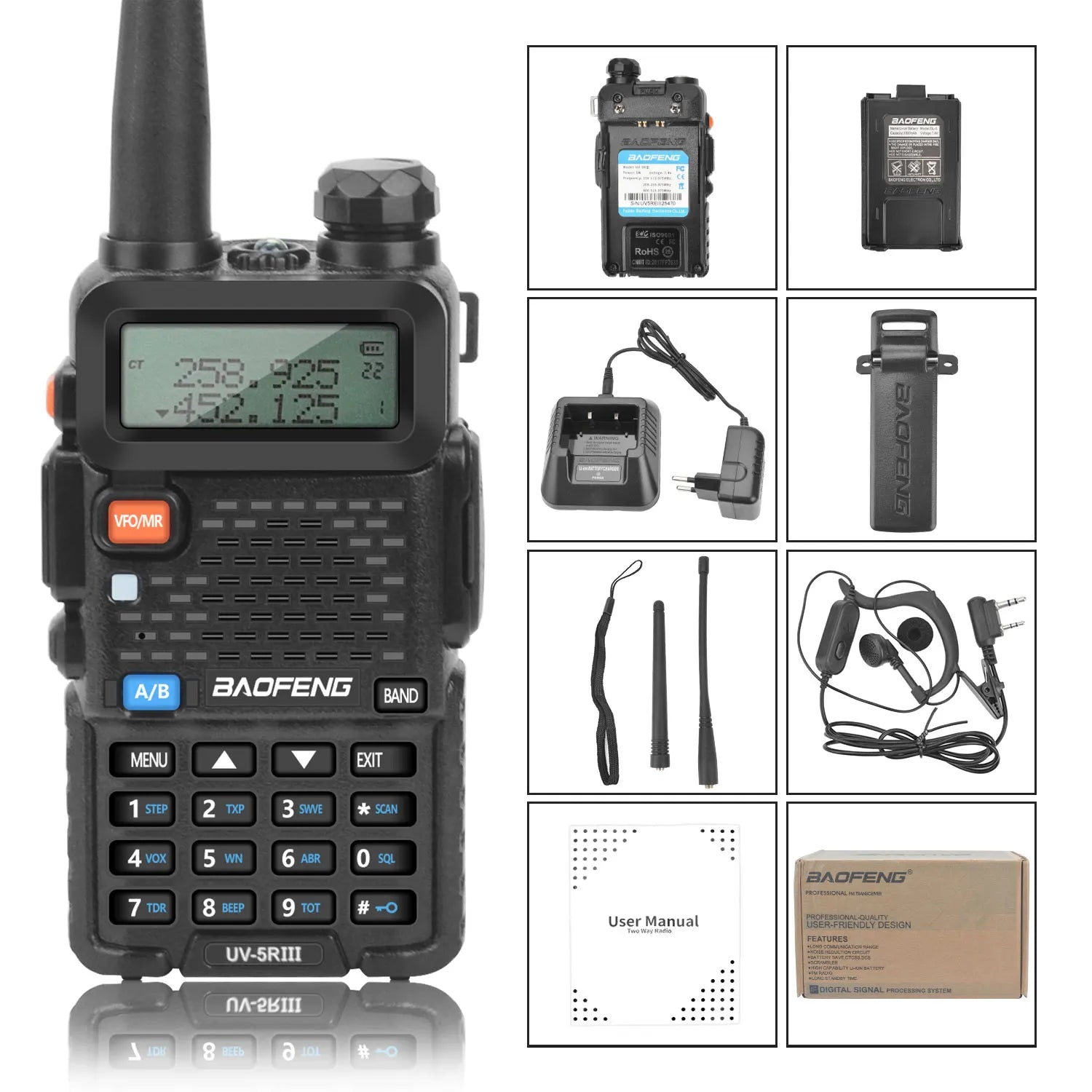

Package Contents of each Unit:
1×UV-5RIII Tri-band Radio body
1×1800mah Rechargeable Lithium-Ion Battery
1×FM/136-174MHz/400-520MHz Dual Band SMA-Female Antenna
1×FM/145-230MHz/245-260MHz Dual Band SMA-Female Antenna
1×Desktop Charger
1×AC Adapter
1×Battery Clip
1×Hand strap
1×Earphone
1×Eng User Manual
